Anterior mediastinal lesion segmentation based on two-stage 3D ResUNet with attention gates and lung segmentation


Abstract—Anterior mediastinal disease is a common disease in the chest. Computed
tomography (CT), as an important imaging technology, is widely used in the diagnosis of
mediastinal diseases. Doctors find it difficult to distinguish lesions in CT images because of
image artifact, intensity inhomogeneity, and their similarity with other tissues. Direct
segmentation of lesions can provide doctors a method to better subtract the features

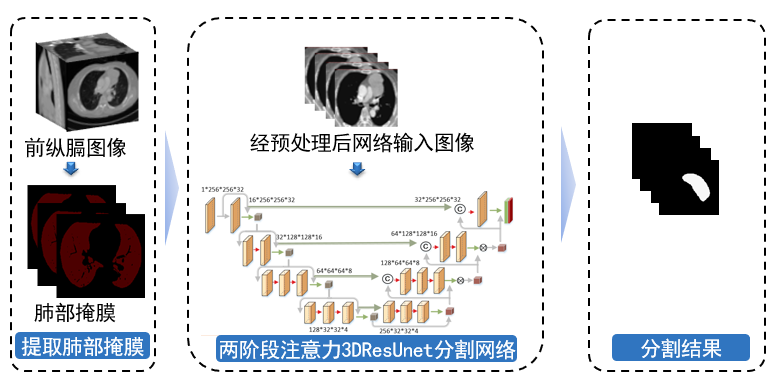

of the lesions, thereby improving the accuracy of diagnosis. Method: As the trend of image processing technology, deep learning is more accurate in image segmentation than traditional methods. We employ a two-stage 3D ResUNet network combined with lung segmentation to segment CT images. Given that the mediastinum is between the two lungs, the original image is clipped through the lung mask to remove some noises that may affect the segmentation of the lesion. To capture the feature of the lesions, we design a two-stage network structure. In the first stage, the features of the lesion are learned from the low-resolution downsampled image, and the segmentation results under a rough scale are obtained. The results are concatenated with the original image and encoded into the second stage to capturemore accurate segmentation information fromthe image. In addition, attention gates are introduced in the upsampling of the network, and these gates can focus on the lesion and play a role in filtering the features. The proposed method has achieved good results in the segmentation of the anterior mediastinal. Results: The proposed method was verified on 230 patients, and the anterior mediastinal lesions were well segmented. The average Dice coefficient reached 87.73%. Compared with the model without lung segmentation, the model with lung segmentation greatly improved the accuracy of lesion segmentation by approximately 9%. The addition of attention gates slightly improved the segmentation accuracy. Conclusion: The proposed automatic segmentation method has achieved good results in clinical data. In clinical application, automatic segmentation of lesions can assist doctors in the diagnosis of diseases andmay facilitate the automated diagnosis of illnesses in the future.

前纵膈病灶分割
